Mitee-Bite T-Slot Clamps

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD61.96 EA
Select
Cost: CAD61.96 EA -
Add to cart

T-Slot Clamps

The original MITEE-BITE T-Slot Clamp combines our unique cam action clamping element with a T-nut.

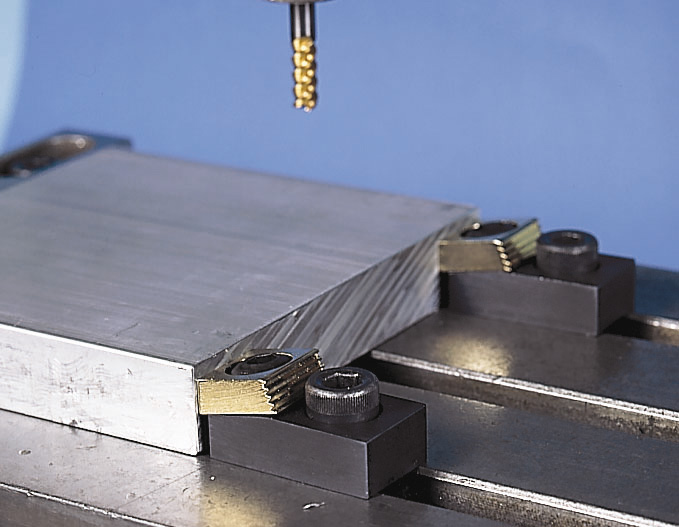

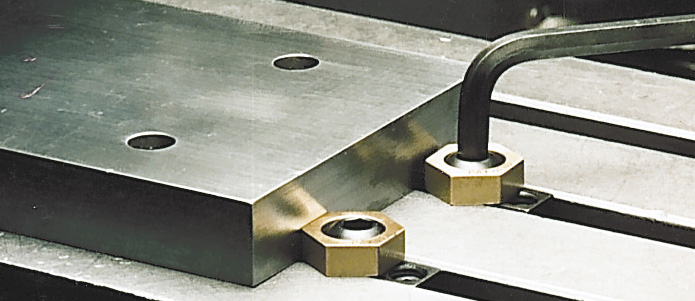

  • Locks in machine T-slot for low profile clamping.
  • Makes fast set-ups possible right on the machine table.
  • Brass hex follows contour of unusual shaped parts.
  • Packaged in pairs or complete kits.


Inch

Part
Number		 T-Slot
Size		Number
of ClampsPer Pack		Holding Force
(lbs)
10420   3/8 2 800
10421   7/16 2 800
10422   1/2 2 2000
10423   9/16 2 2000
10424   5/8 2 3000
10426   11/16 2 3000



Metric (hex key not included)

Part
Number		 T-Slot
Size		Number
of Clamps
Per Pack		Torque
(N.m.)		Holding Force
(N.)
50422   8mm 2 8.50 3558
50424   10mm 2 8.50 3558
50426   12mm 2 11.30 3355
50428   14mm 2 28.00 8900
50430   16mm 2 61.00 13340
50432   18mm 2 61.00 13340
50434   20mm 2 135.00 26700
50436   22mm 2 135.00 26700
