Mitee-Bite OK-Vise Clamps

Brand: Mitee-Bite CNC Fixture ClampsMitee-Bite CNC Fixture Clamps
CAD71.82 EA
Select
Cost: CAD71.82 EA -
Add to cart

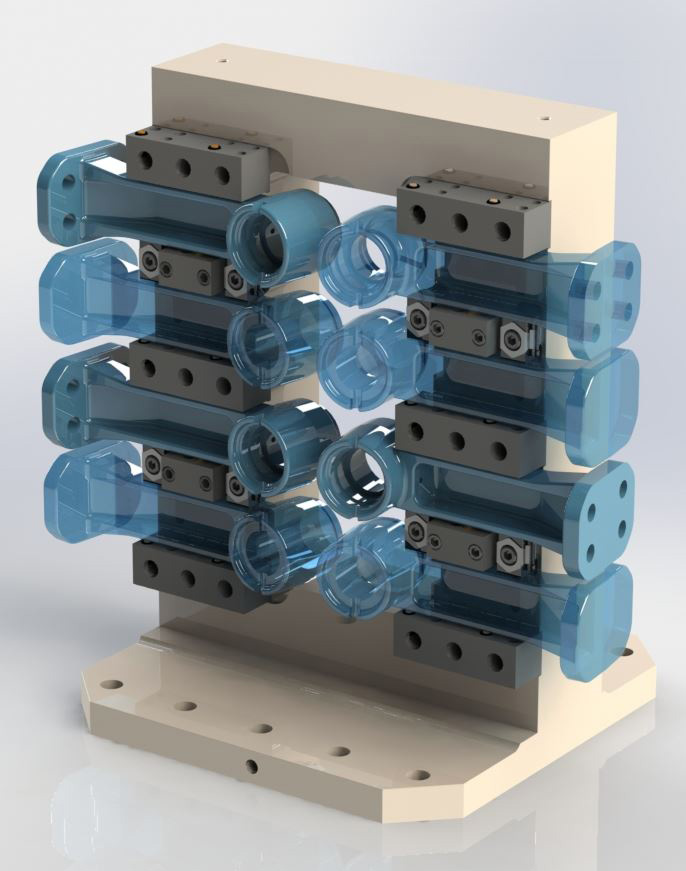

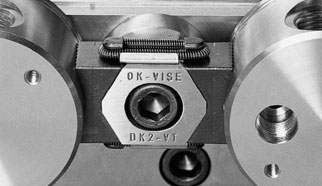

OK-VISE® Clamps

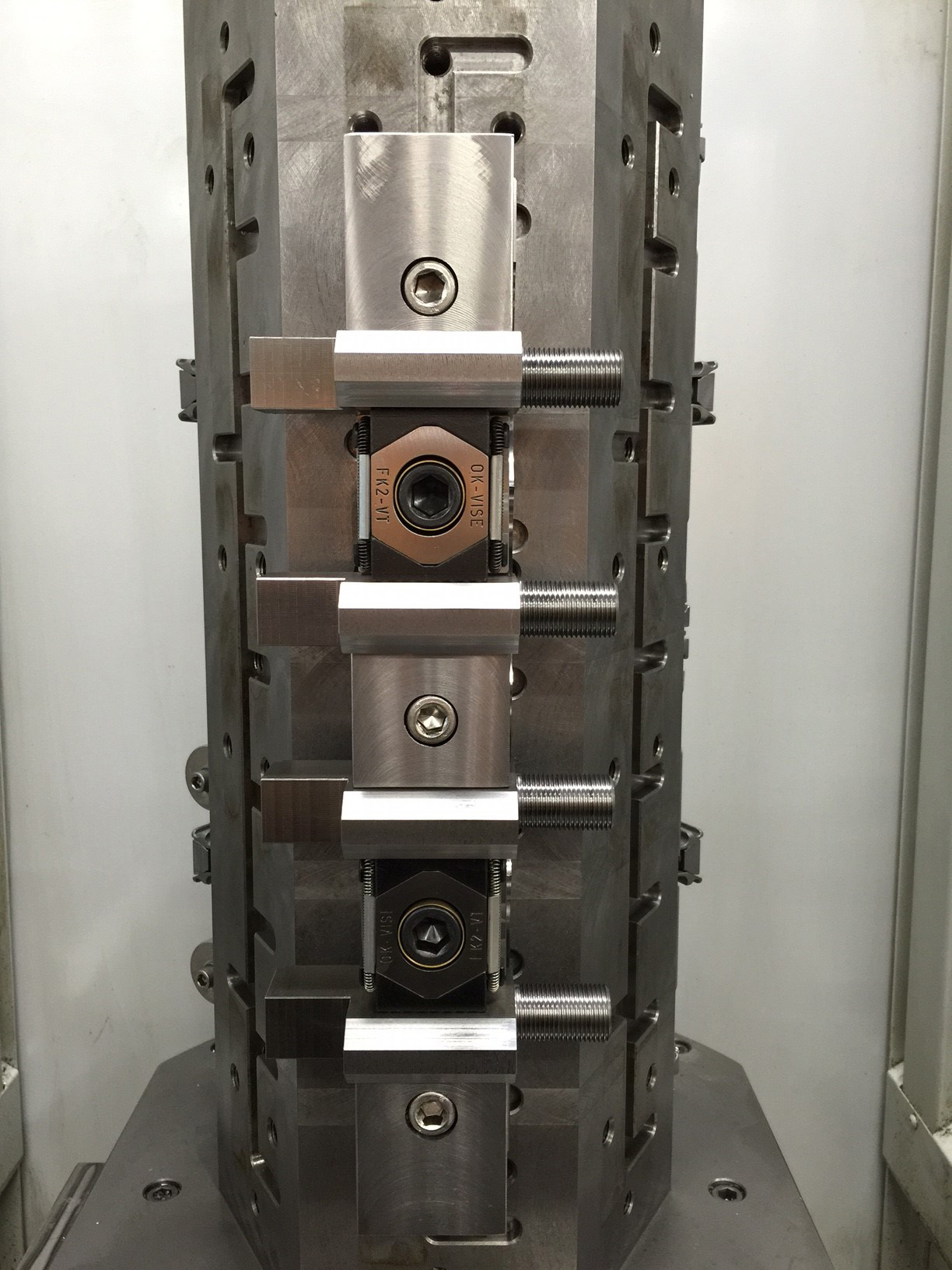

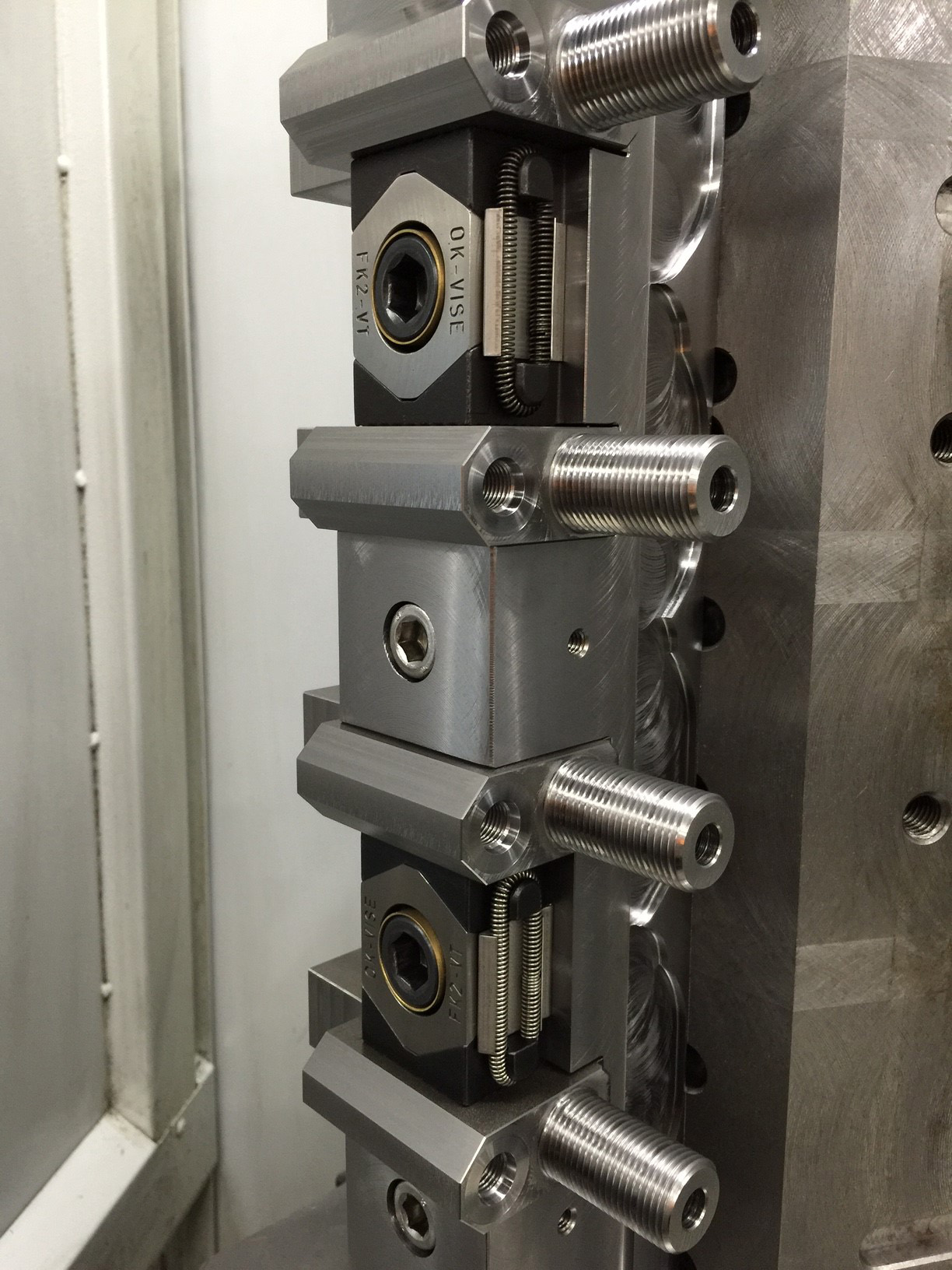

THREE-DIMENSIONAL MACHINING
Due to a low-profile design of OK-VISE® Clamps, it is possible to execute flexible three-directional machining of workpieces with one fastening. This ability to machine a workpiece in three planes means improved accuracy.

PULL DOWN ACTION

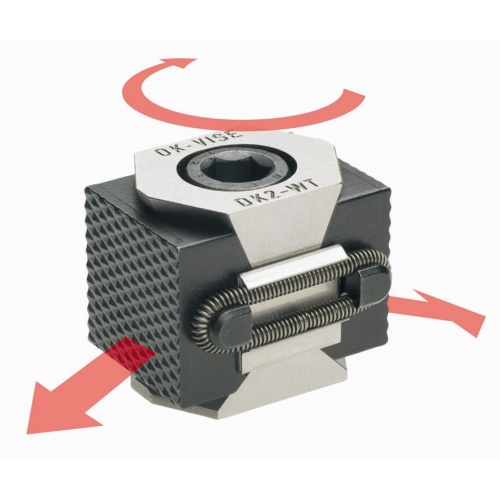

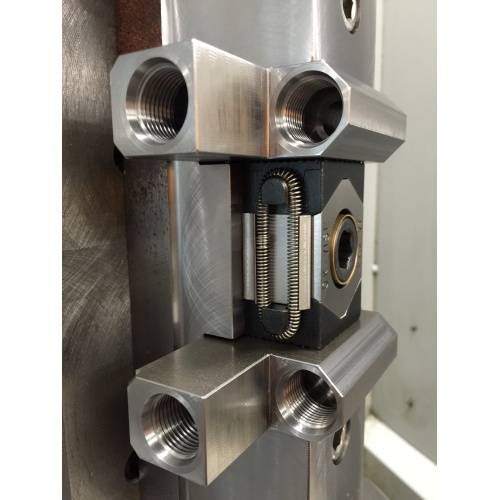

The single wedge clamps keep the workpieces steadily in place, not allowing upward or downward movement. The double-wedge clamps generate a pull-down action pressing the workpieces towards the fixture base.

MACHINABLE JAWS
Single-wedge clamps are also available with extended jaws that can be machined to suit the geometry of the workpiece.

SPECIAL MODELS
“E”: (Balls on each Jaw) A self adjusting serrated steel ball is helpful when clamping castings and workpieces of irregular shape.
“T”: Jaws tapped with M5 threads for socket head screws allowing for quick and easy use of various different additional pieces.
“SS”: BK2 is available in high quality stainless steel to meet the demands of EDM applications.

ECONOMY MODEL
“O”: Not ground as precise as standard models. Same raw material is being used and the bottom of the jaws are ground for precise locating on the fixture base.



Single-Wedge OK Vise® Clamps
Part No. ModelDesc.Min.A
Optimum		Max.BCDEFMounting
Screw
(included)		Torque
(Ft/lbs.)		Holding
Force of
Jaws (lbs)		Hardness
of Jaws
HRC		Repl.
Spring		Repl.
Side Plate
47100   AK2-VT-S0Smooth Jaw.79.90.98.86.43.59.16.06010 – 32 x 3/472,00048-52N/A47123
47110   BK2-VT-SSmooth Jaw1.061.141.221.14.59.83.10.0605/16 – 18 x 3/4305,50048-524712547127
47105   BK2-VT-OSerrated Jaw1.061.141.221.14.59.83.10.0605/16 – 18 x 3/4183,00048-524712547127
47103   BK2-VT-SOSmooth Jaw1.061.141.221.14.59.83.10.0605/16 – 18 x 3/4183,00048-524712547127
47115   BK2-VTSerrated Jaw1.061.141.221.14.59.83.10.0605/16 – 18 x 3/4305,50048-524712547127
47113   BK2-VT-SSStainless
Smooth Jaw		1.061.141.221.14.59.83.10.0605/16 – 18 x 3/4305,50048-524712547127
47130   DK2-VTISerrated Jaw1.651.771.931.61.871.18.16.0801/2 – 13 x 1 1/411014,50048-524713547137
47160   FK2-VTSerrated Jaw2.242.402.572.201.141.65.20.1455/8 – 11 x 1 1/225024,90048-524716147162



Double-Wedge OK Vise® Clamps
Part No. ModelDesc.Min.A
Optimum		Max.BCC1DEFMounting
Screw
(included)		Torque
(Ft/lbs.)		Holding
Force of
Jaws (lbs)		Hardness
of Jaws
HRC		Repl.
Spring		Repl.
Side Plate
47150   DK2-WTISerrated Jaw1.651.811.931.611.421.181.18.20.0801/2 – 13 x 1 1/211020,00048-524713547137
47180   FK2-WTSerrated Jaw2.282.402.642.201.971.651.65.20.1455/8 – 11 x 21/425033,00048-524716147162



Machinable Single-Wedge OK Vise® Clamps
Part No. ModelDesc.Min.A
Optimum		Max.BCDEFMounting
Screw
(included)		Torque
(Ft/lbs.)		Holding
Force of
Jaws (lbs)		Hardness
of Jaws
HRC		Repl.
Spring		Repl.
Side Plate
47120   BK2-VT+3Smooth Jaw1.301.381.461.14.59.83.10.0605/16 – 18 x 3/4305,00030-344712547127
47140   DK2-VTI+5Serrated Jaw2.052.172.321.61.871.18.16.0801/2 – 13 x 11/411012,00030-344713547137
47170   FK2-VT+5Serrated Jaw2.642.762.992.201.141.65.20.1455/8 – 11 x 11/225022,00030-344716147162



Special Model OK Vise® Clamps
Part No. ModelDesc.Min.A
Opt.		Max.BCDEGHKLMounting
Screw
(included)		Torque
(Ft/lbs.)		Holding
Force of
Jaws (lbs)		Hardness
of Jaws
HRC
47112   BK2-VT-TTapped Jaws1.301.381.461.140.590.830.100.300.470.83M55/16 – 18 x 3/4305,50030-34
47145   DK2-VTI-TTapped Jaws1.811.932.091.610.871.180.160.430.711.10M51/2-13 X 1 1/4 SHCS11012,00030-34
47175   FK2-VT-TTapped Jaws2.402.562.762.201.141.650.190.571.021.57M55/8-11 X 1 1/2 SHCS25022,00030-34


Part No. ModelDesc.Min.A
Opt.		Max.BCDEGHKLMounting
Screw
(included)		Torque
(Ft/lbs.)		Holding
Force of
Jaws (lbs)		Hardness
of Jaws
HRC
47185   BK2-VT-BSerrated Ball on Jaw1.301.381.461.14.59.83.10––––5/16 – 18 x 3/4305,50048-52
47190   DK2-VTI-BSerrated Ball on Jaw2.042.162.321.61.871.18.16––––1/2 – 13 x 1 1/411012,00048-52
47187   BK2-VT-ESerrated Ball on each Jaw1.541.611.691.140.590.830.10––––5/16-18 X 3/4 SHCS305,000N/A
47186   DK2-VTI-E Serrated Ball on each Jaw2.442.562.721.610.861.180.15––––1/2-13 X 1 1/4 SHCS11012,000N/A



OK-Vise® Replacement Parts
ModelSpringSide Plate
AK Series 47095* 47123
BK Series 47125 47127
DK Series 47135 47137
FK Series 47161 47162

*Supplied with O-ring.

All clamps available with smooth jaws. Lead time may apply.
