Machinable Uniforce® Clamps

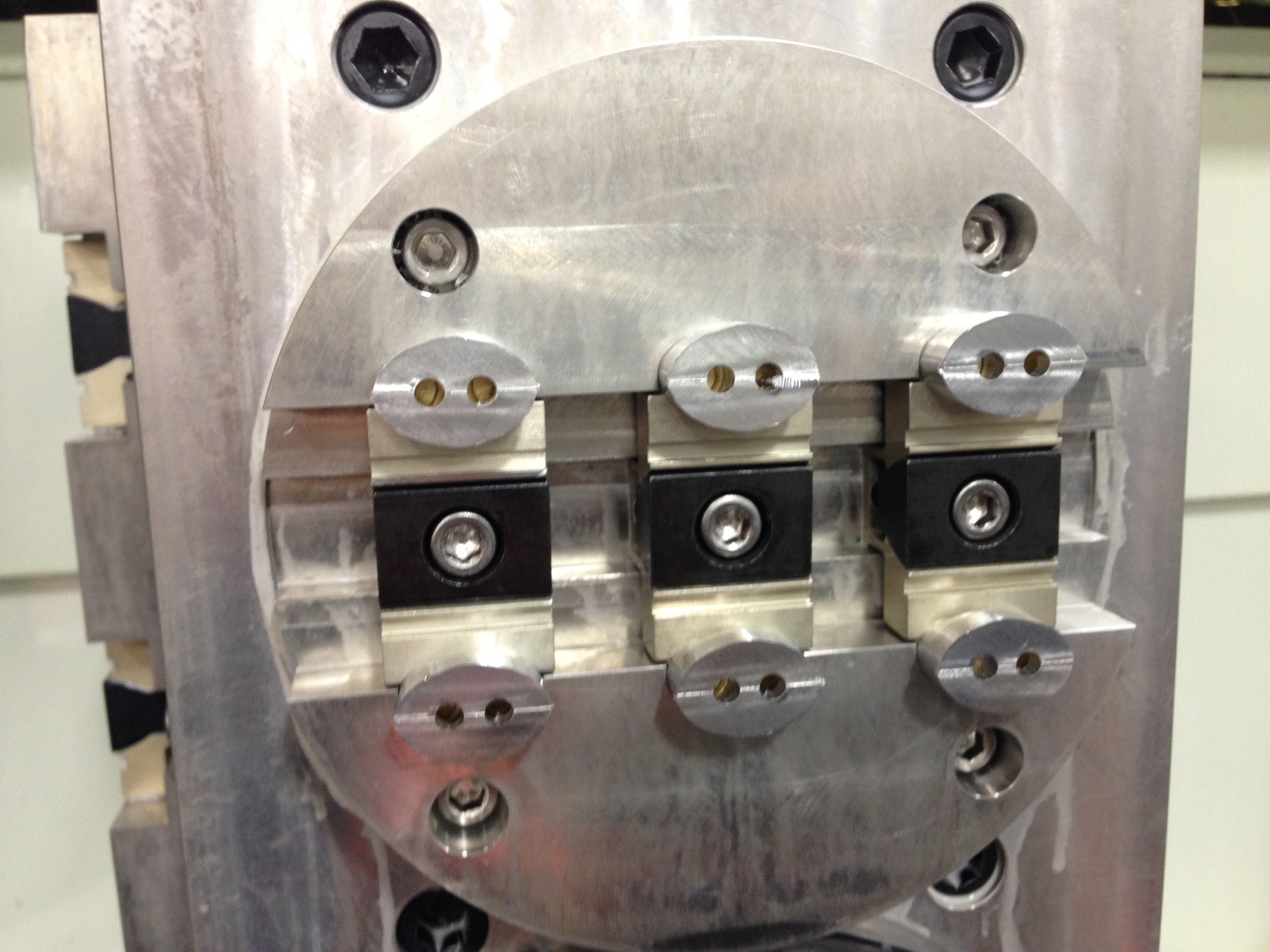

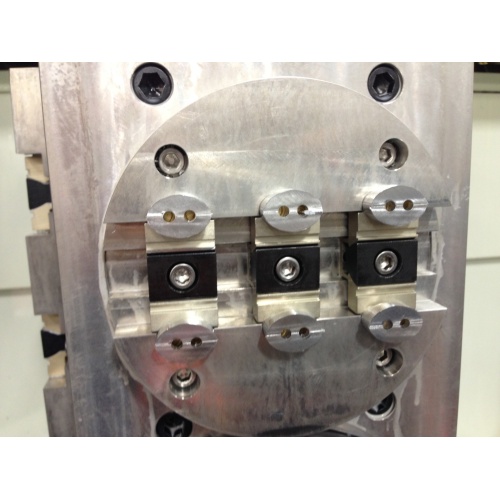

The compact Mitee-Bite Uniforce® clamp is available with extra material on the clamping jaws so it can be machined to conform to the shape of your workpiece – enabling you to fixture unusual applications easily. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel.

A unique locking plate properly expands the clamp while making it rigid for machining the jaws to your specifications, without vibration. Remove locking plate before clamping workpiece. Available in five sizes.

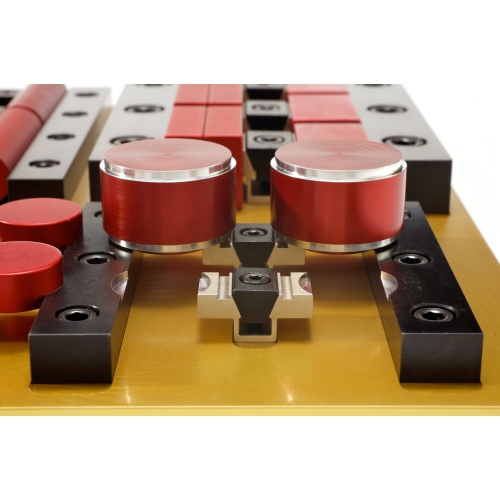

Now you can hold those round and unusual shape parts with ease. This compact workholding will allow more parts per load at a lower price than vise soft jaws. (See Locating Rails)

Machinable Uniforce Clamp

NOTE: When clamp is used to hold flat stock, use locking plate to machine faces parallel.

Inch

ModelPart No.
with
Locking Plate		 Part No.
without
Locking Plate		 A*BCDEF†GH**IMax
Torque
(Ft/lbs.)		Holding
Force
(lbs.)		Replacement
Steel		Replacement
Channel
500 60050   60055   1.125 .50 .62 .420 .25 .18 .400 2-56 8-32 2.5 500 60310 60140
750 60075   60080   1.500 .75 .94 .632 .37 .26 .625 6-32 1/4-20 10.8 1,500 60320 60125
1000 60100   60105   2.000 1.00 1.25 .820 .50 .39 .812 6-32 5/16-18 10.4 2,000 60330 60135
1500 60150   60153   3.000 1.50 1.87 1.215 .75 .62 1.200 10-32 1/2-13 28.3 3,500 60340 60160
2000 60200   60203   4.000 2.00 2.50 1.625 1.00 .80 1.625 1/4-20 5/8-11 55.0 6,000 60350 60180
A* The distance needed between workpieces for clamp clearance, drill and tap mounting holes at center of “A” dimension.
F† The amount of machinable stock on jaws.
H** Mounting Screws included.



Metric

ModelPart No.
with
Locking Plate		 Part No.
without
Locking Plate		 A*BCDEF†GH**IMax
Torque
(N.m.)		Holding
Force
(N.)		Replacement
Steel		Replacement
Channel
500 80050   80055   28.6 12.7 15.7 10.67 6.3 4.6 10.16 M2 M4 3.40 2225 60310 60140
750 80075   80080   38.1 19.1 23.9 16.05 9.4 6.6 15.87 M4 M6 14.30 6675 60320 60125
1000 80100   80105   50.8 25.4 31.8 20.83 12.7 9.9 20.62 M4 M8 14.50 8900 60330 60135
1500 80150   80155   76.2 38.1 47.5 30.86 19.1 15.7 30.48 M5 M12 38.40 15575 60340 60160
2000 80200   80205   101.6 50.8 63.5 41.28 25.4 20.3 41.28 M6 M16 74.60 26700 60350 60180
A* The distance needed between workpieces for clamp clearance, drill and tap mounting holes at center of “A” dimension.
F† The amount of machinable stock on jaws.
H** Mounting Screws included.
