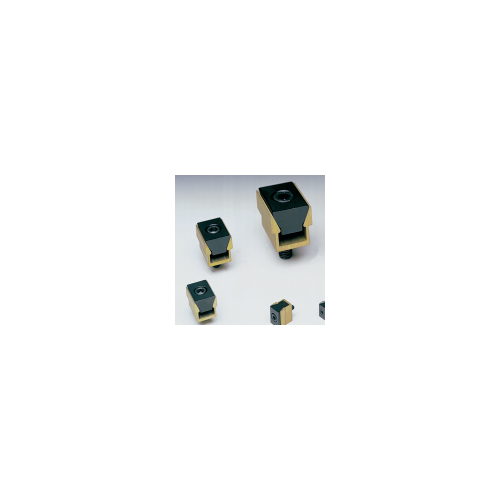

Uniforce® Clamps

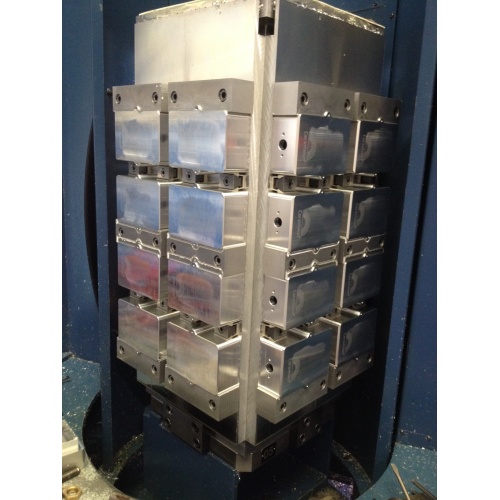

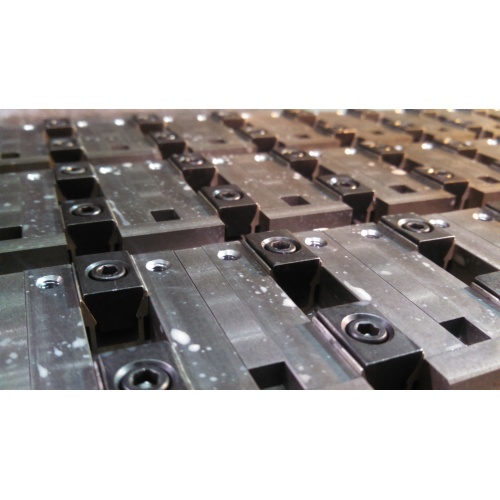

The compact, economical MITEE-BITE Uniforce® Clamp enables you to fixture more parts on the machine table. The specially designed steel wedge spreads the clamping force uniformly on both sides of the 7075-T6 aluminum channel.

– Increases production.
– Minimizes tool changes.
– Holds two parts with equilateral clamping action.
– Ideal for clamping flat or round work pieces.
– Reduces wasted space.
– Easily mated to hydraulic pull cylinders.
– Ideal for pallet changers.
– Show with our Locating Rails

Inch

Part No.	Model	A	B	B1	C	D*	E	F†	Thread Size	Maximum Spread	Max. Torque (ft/lbs)	Holding Force (lbs)	No. of Clamps per pack	Key Size	Replacement Steel + Channel
60250	250	.240	.27	.250	.320	.210	.140	.250	2 – 56	.260	.5	200 lbs	6	5/64	60305	60205
60375	375	.360	.38	.375	.470	.310	.185	.375	4 – 40	.390	1.1	310 lbs	6	3/32	60307	60207
60500	500	.485	.58	.500	.625	.410	.220	.500	8 – 32	.530	2.5	500 lbs	8	9/64	60310	60210
60750	750	.735	.77	.750	.940	.635	.375	.750	1/4 – 20	.785	10.0	1500 lbs	6	3/16	60320	60220
61000	1000	.980	1.02	1.000	1.250	.820	.500	1.000	5/16 – 18	1.050	19.0	2500 lbs	4	1/4	60330	60230
61500	1500	1.470	1.52	1.500	1.875	1.215	.750	1.500	1/2 – 13	1.560	28.3	3500 lbs	2	3/8	60340	60240
62000	2000	1.960	2.03	2.000	2.500	1.625	1.000	2.000	5/8 – 11	2.080	55.0	6000 lbs	2	1/2	60350	60245

*D – A milled slot wider than D dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
†F is the distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of F dimension.

Metric

Part No.	Model	A	B	B1	C	D*	E	F†	Thread Size	Maximum Spread	Max. Torque (N.m.)	Holding Force(N)	No. of Clamps per pack	Key Size	Replacement Steel + Channel
80250	250	6.1	6.9	6.4	8.1	5.3	3.6	6.4	M2	6.7	0.70	880	6	1.5	60305	60205
80375	375	9.1	9.7	9.5	11.9	7.9	4.7	9.5	M2.5	10.0	1.50	1350	6	2	60307	60207
80500	500	12.3	14.5	12.70	15.9	10.4	5.6	12.7	M4	13.2	3.40	2225	8	3	60310	60210
80750	750	18.6	19.0	19.05	23.8	16.1	9.5	19.0	M6	20.3	13.50	6675	6	5	60320	60220
81000	1000	24.8	25.9	25.40	31.7	20.8	12.7	25.4	M8	26.9	25.00	11125	4	6	60330	60230
81500	1500	37.3	38.6	38.10	47.6	30.8	19.0	38.1	M12	39.9	38.40	15575	2	10	60340	60240
82000	2000	49.7	51.5	50.80	63.5	41.2	25.4	50.8	M16	53.0	74.60	26700	2	14	60350	60245

D* – A milled slot wider than D dimension will insure clamp remains in line with workpiece. Clamp sides should not come in contact with slot walls during expansion.
F† The distance needed between workpieces for clamp clearance. Drill and tap mounting hole on the center of F dimension.
